LMS DATA SHEET

Data Sheet for LSM

All data below resulted form five (5) tests at each point and are statistical means.

Trig	Grey	Orange	Green*	Black**	Special***
	Unfiltered	Unfiltered	5KHz LP	5KHz LP	5KHz LP
1	18 g's 176 ms^2 10.3 ms	30 g's 294 ms^2 6.76 ms	66 g's 647 ms^2 2.52 ms	N/A	21.6 g's 211 2.68 ms
3	38 g's 372 ms^2 9.68 ms	52 g's 510 ms^2 6.38 ms	162.0 g's 1588 ms^2 2.0 ms	210 g's 2058 ms^2 1.45 ms	37.8 g's 370 ms^2 2.96 ms
5	62 g's 607 ms^2 9.0 ms	81 g's 794 ms^2 6.10 ms	255 g's 2500 ms^2 1.7 ms	410 g's 4018 ms2 1.2 ms	55.4 g's 5473 ms^2 3.12 ms
6	N/A	N/A	N/A	N/A	510 g's 5000 ms^2 1.0 ms
7	95 g's 930 ms^2 8.1 ms	116 g's 1137 ms^2 5.9 ms	340 g's 3332 ms^2 1.8 ms	580 g's 5684 ms^2 10.6 ms	615 g's 6027 ms^2 0.96 ms
9	130 g's 1274 ms^2 7.35 ms	150 g's 1470 ms^2 5.91 ms	400 g's 3940 ms^2 1.65 ms	765 g's 7497 ms^2 1.07 ms	877 g's 8595 ms^2 0.92 ms
11	175 g's 1715 ms^2 6.6 ms	N/A	450 g's 4410 ms^2 1.6 ms	N/A	N/A

* Gren MEP with 1/8th inch felt pad on Seismic mass.
** Blak MEP with 1/4th inch felt pad on Seismic mass.
*** Special Balc 1in block with 1/8th inch 3M Neoprene and 1/4th inch felt pad on Seismic mass.

Pictures of LSM Data Charts

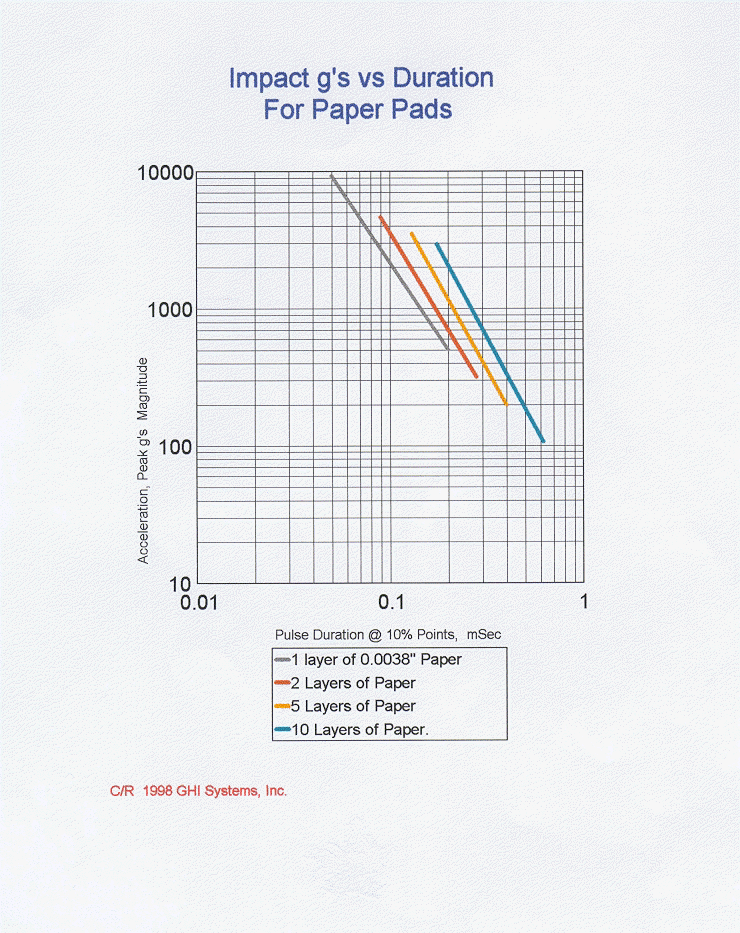

• Imapact g's vs Duration for Paper Pads
• Imapact g's vs Duration for Misc. Pads
